Overview

The VIBRA 9001 represents a breakthrough in civil engineering as the first mechanical vibrodyne with a linear actuator. Designed and manufactured entirely in Italy, it offers a versatile and lightweight solution for a variety of applications.

The VIBRA 9001 is the first mechanical vibratory shaker with a linear actuator, designed specifically for civil engineering applications. Designed and built entirely in Italy, it is available in various sizes to suit a variety of application needs. Its lightweight design makes the vibratory shaker easily transportable, allowing for manual movement within structures without the need for heavy machinery.

VIBRODINA LINEARE – VIBRA 9001

Linear Vibrodina with Mechanical Actuator

  • The VIBRA-9001 is the first mechanical vibrodina with a linear actuator, designed for civil engineering applications.

  • It generates constant amplitude forces at varying frequencies.

  • Built entirely in Italy, available in different sizes to suit specific applications.

  • Structure is made of aluminum, making it lightweight, transportable, and easy to install without cranes or heavy machinery.

Key Features

  • Oil-free operation

  • Low power consumption

  • Lightweight & compact design

  • Easy to transport with integrated handles

  • User-friendly

  • Highly configurable & modular

Applications

  • Civil engineering – structural testing

  • Dynamic identification with EMA (Experimental Modal Analysis)

  • Pipe & crack inspection

  • Ideal when a constant and appropriate force is needed even at low frequencies

Technical Specifications

Parameter Unit VIBRA-9001-1000 VIBRA-9001-1500
Max Stroke mm 1000 1500
Min Frequency (a=1g) Hz 1.0 0.7
Max Frequency Hz 50 50
Max Acceleration g 1 1
Moving Mass (min) kg 12 12
Additional Mass (max) kg 28 28
Total Moving Mass kg 40 40
Total Weight* kg 85 95
Max Power kW 2 2
Power Supply – AC 110–240 V, 50–60 Hz AC 110–240 V, 50–60 Hz

* excludes modular weights

vibra9000_2

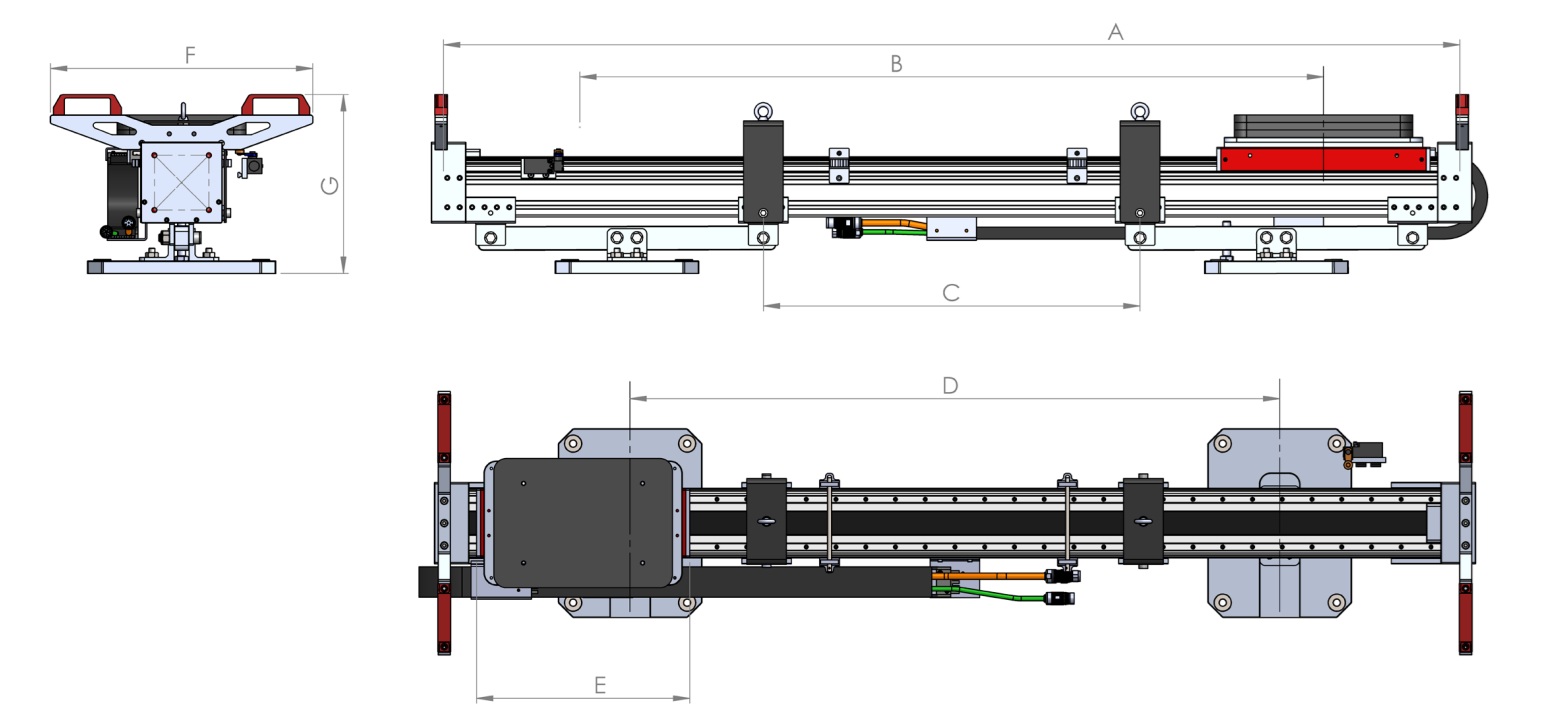

Dimensions

Model A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) Weight* (kg)
VIBRA-9001-1000 1370 1000 510 870 430 530 360 85
VIBRA-9001-1500 2050 1500 760 1310 430 530 360 95

Control System – RTC 9000-VIBRA

  • Bi-axial controller (independent or simultaneous operation).

  • Includes SS 9000 Software Suite + SHAKER Tool.

  • Controls displacement, frequency sweep, and permanence time.

  • Up to 4 acquisition channels for accelerometers.

  • Supplied with a portable PC for field use.

Software – SHAKER

  • Designed for field operation.

  • Intuitive interface to set test parameters.

  • Supports:

    • Step mode (set frequency steps and permanence time).

    • Sweep mode (continuous frequency variation).

  • Automatically adjusts stroke to keep induced force constant.
